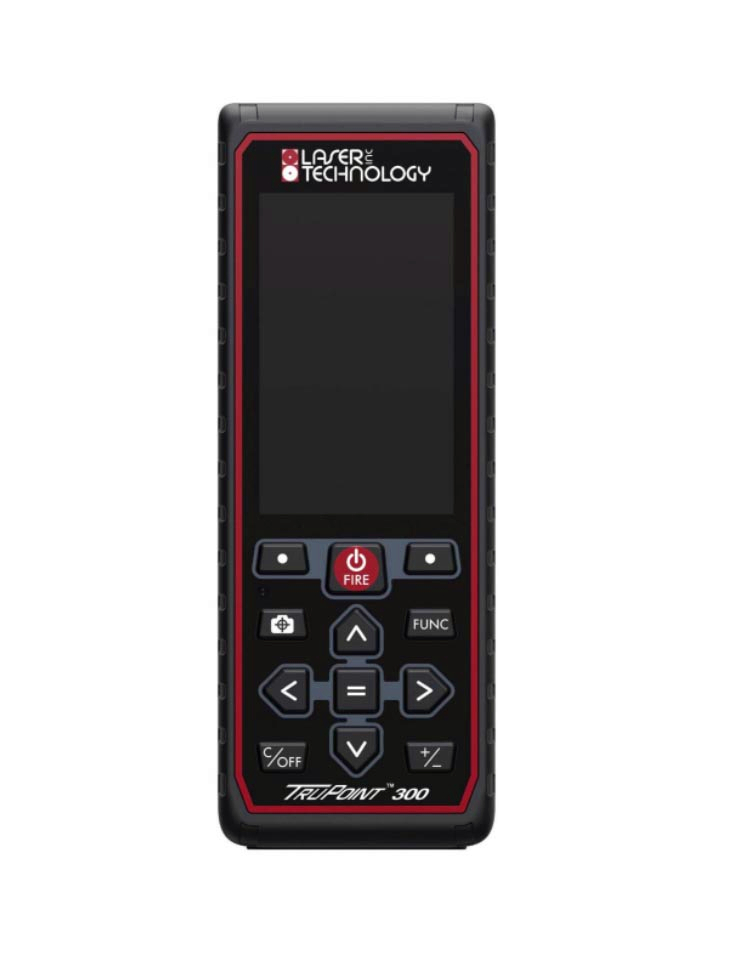

TruPoint300掌上全站儀（替代Leica S910）
TruPoint? 300 Mapping Kit
Description:
Small, lightweight and compact total station ideal for use in applications such as Crash & Crime Scene Investigation, Natural Disaster or Hazmat Surveys.
SKU: 7035196
The TruPoint? 300 total station produces survey-grade accuracy, offers onboard data storage and calculations, and communicates wirelessly with your phone or tablet. Ideal for any size department, it measures distance, inclination and horizontal angles for X, Y, Z measurements. The data collection workflow saves time and accurately captures measurements up to 300 meters.
The TruPoint 300 total station is the go-to tool for collecting the measurements you need quickly, easily, and safely. No need to carry around multiple, heavy tools anymore.
The TruPoint 300 integrates with the LaserSoft QuickMap 3D? mapping app for iPhone? and iPad?. Use this full featured system to accurately map evidence using the single-shot, radial with angle mapping method.
Join the next step in technology with the TruPoint 300: the all-in-one measurement solution.
How the TruPoint 300 Total Station Measures Up:
Obtains missing line measurements using MapStar? Angle Technology.
Operates easily with step-by-step icons and a color display screen.
Provides high quality, accurate, easy to see targets measuring to every time with the 4X Zoom camera.Collects and stores 3D measurement coordinates in DXF format.

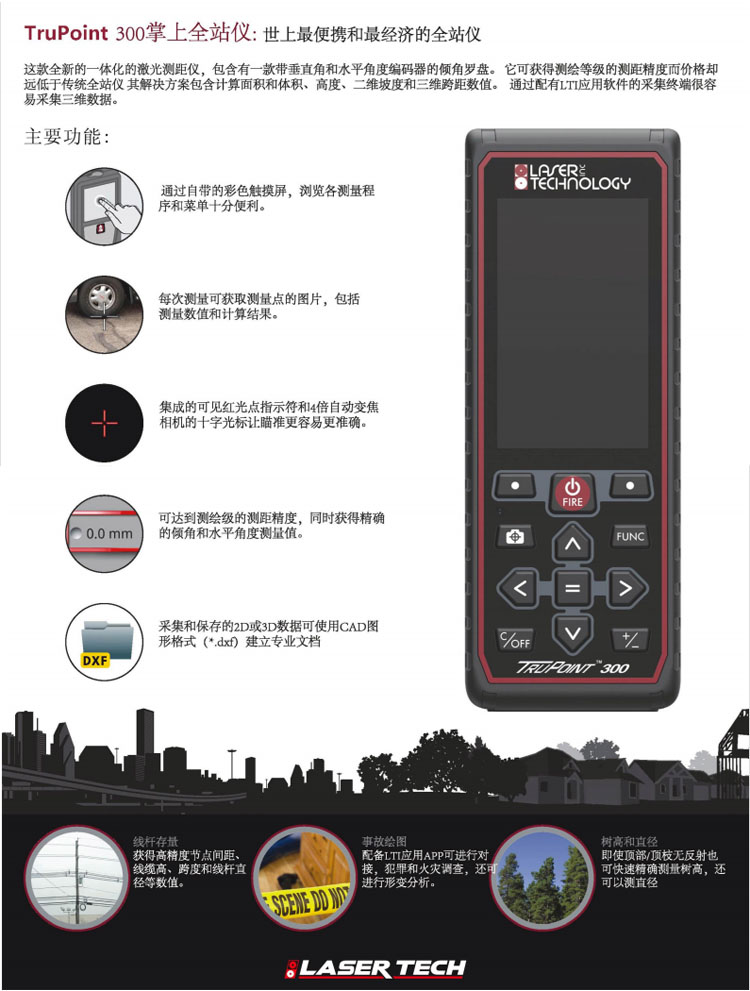

圖譜恩TruPoint300掌上全站儀簡介
這款全新的一體化的激光測距儀，包含有一款帶垂直角和水平角度編碼器的傾角羅盤。它可獲得測繪等級的測距精度而價格卻遠低于傳統全站儀，其解決方案包含計算面積和體積、高度、二維坡度和三維跨距數值。通過配有LTI應用軟件的采集終端很容易采集三維數據。
Key Features
Set up in seconds and start mapping within minutes
Shutting down roadways is expensive and carries the dangerous risk of secondary crashes; time is always of the essence. This stand-alone complete mapping system complements the tools and workflows in your crash scene mapping toolbox.
Reflectorless technology eliminates the need for a prism
With limits on manpower and budget, there cannot always be a second person to assist at a scene. Laser Tech’s reflectorless technology will allow for the first reconstructionist at the scene to start the scene mapping and get the road back open as soon as possible.
Use control points to stitch together large scenes and create reference points for drones
Laser Tech equipment also serves as a complement to the other pieces of equipment used by your department. Use control points to stitch together large scenes and to create reference points for drones or robots.
TruPoint300掌上全站儀主要功能：
1、通過自帶的彩色觸摸屏，瀏覽各測量程序和菜單十分便利
2、每次測量可獲取測量點的圖片，包括測量數值和計算結果
3、集成的可見紅光點指示符和4倍自動變焦相機的十字光標讓瞄準變得準確容易
4、可達到測繪級的測距精度，同時獲得準確的傾角和水平角度測量值
5、采集保存的2D或3D數據可使用CAD圖形格式（DXF），建立專業文檔
TruPoint300掌上全站儀產品參數：
測距量程:0.05-300m
測距精度:±1mm
角度精度:±0.1°（水平角和垂直角）
角度量程:360°(水平角)，-40°-80°（垂直角）
測量單位:公制和英制
圖片分辨率:圖片：800*600/屏幕：240*400
真實目標獲取:4倍自動變焦相機和紅點激光選點
文件輸出格式:Jpg和dxf
CAD文件存儲數量：20 DXF文件，每個文件30個點
通訊：藍牙/WIFI
電池類型：充滿電可達4000次測量的鋰電池
充電時間：4h
防護等級IP54
工作溫度-10℃-+50℃
腳架接口1/4-20螺紋
尺寸164*61*32mm
重量291g
TruPoint300掌上全站儀產品應用：代替徠卡S910
1、線桿測量：獲得高精度節點間距、線纜高、跨度和線桿直徑等數值
2、事故繪圖：配備LTI應用APP可進行對接，犯罪和火災調查，還可進行形變分析
3、樹高和直徑：即使頂部/頂枝無反射也可準確測量樹高，還可以測直徑
4、現場檢查：收集重要的坡度值和現場計算面積，判定任意兩目標間的安全間隙
5、形變分析：沿著汽車對所有形變處瞄準打點是更有效分析撞擊的方式
6、堆體體積：連接LTI的APP可計算室內儲存的或更緊密空間中堆體的體積
